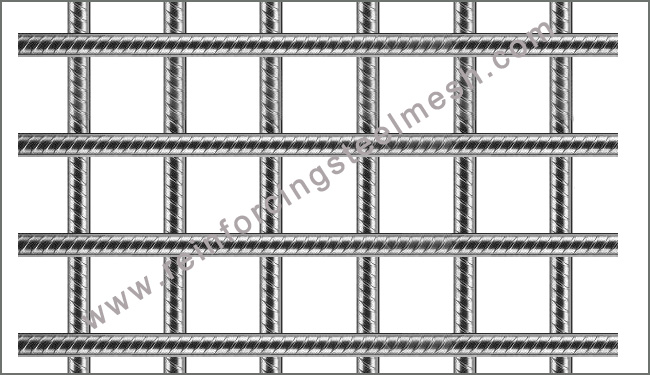

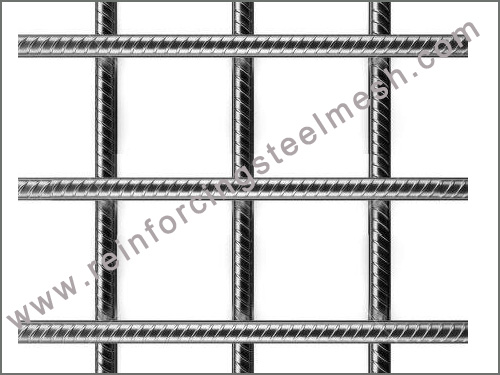

BRC Square Mesh fabric has wires of the same size and spacing, both longitudinally and transversely. It is used where a slab or wall needs the same area of reinforcement in both directions.
| BRC Square Mesh | |||
| Ref No. | Longitudinal Wires (mm) | Cross Wires (mm) | Mass (Kg/m2) |
| A1327 | 13.0 @ 100 | 13.0 @ 100 | 20.84 |
| A1131 | 12.0 @ 100 | 12.0 @ 100 | 17.76 |
| A950 | 11.0 @ 100 | 11.0 @ 100 | 14.92 |
| A785 | 10.0 @ 100 | 10.0 @ 100 | 12.32 |
| A636 | 9.0 @ 100 | 9.0 @ 100 | 9.98 |
| A503 | 8.0 @ 100 | 8.0 @ 100 | 7.90 |
| A385 | 7.0 @ 100 | 7.0 @ 100 | 6.04 |
| A283 | 6.0 @ 100 | 6.0 @ 100 | 4.44 |
| A196 | 5.0 @ 100 | 5.0 @ 100 | 3.08 |
| A126 | 4.0 @ 100 | 4.0 @ 100 | 1.98 |
| A885 | 13.0 @ 150 | 13.0 @ 150 | 13.89 |
| A754 | 12.0 @ 150 | 12.0 @ 150 | 11.84 |
| A634 | 11.0 @ 150 | 11.0 @ 150 | 9.95 |
| A524 | 10.0 @ 150 | 10.0 @ 150 | 8.23 |
| A424 | 9.0 @ 150 | 9.0 @ 150 | 6.67 |
| A335 | 8.0 @ 150 | 8.0 @ 150 | 5.27 |
| A664 | 13.0 @ 200 | 13.0 @ 200 | 10.42 |
| A566 | 12.0 @ 200 | 12.0 @ 200 | 8.88 |
| A475 | 11.0 @ 200 | 11.0 @ 200 | 7.46 |
| A393 | 10.0 @ 200 | 10.0 @ 200 | 6.17 |
| A318 | 9.0 @ 200 | 9.0 @ 200 | 5.00 |
| A252 | 8.0 @ 200 | 8.0 @ 200 | 3.95 |
| A193 | 7.0 @ 200 | 7.0 @ 200 | 3.02 |
| A142 | 6.0 @ 200 | 6.0 @ 200 | 2.22 |
| A98 | 5.0 @ 200 | 5.0 @ 200 | 1.54 |
| A63 | 4.0 @ 200 | 4.0 @ 200 | 1.00 |
