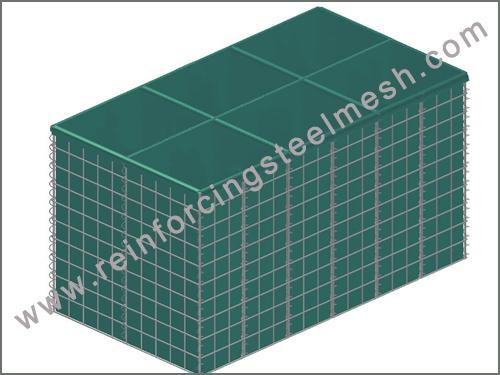

Hesco Barrier
Hesco Barriers is welded gabion modular container, assembled into various size by spiral spring wire, attached with non-woven PP geo textile material which thickness is 2mm, and weight is 200GSM. It is also known as Military Bastions, mainly used for flood control and military fortification.
Unlike common welded gabion, after set up in the field, Hesco barrier can be filled inside with soil, sand or gravel, to become a protection wall. This means raw material are very easy to get, especially suitable for the coastal area where is abundant in sand.
HESCO Barrier style
HESCO Barrier |
Ref No. | Height (mm) | Width (mm) | Length (mm) | Internal Cells | Color |
MIL1 | 1375 | 1060 | 10000 | 9 | Grey/Green |
MIL2 | 610 | 610 | 1220 | 2 | Grey/Green |
MIL3 | 1000 | 1000 | 10000 | 10 | Grey/Green |
MIL4 | 1000 | 1500 | 10000 | 10 | Grey/Green |

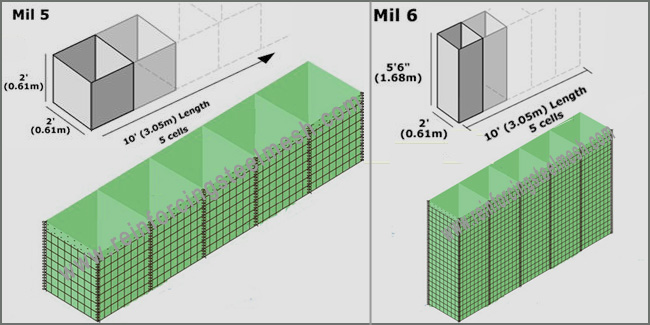

MIL5 | 610 | 610 | 3050 | 5 | Grey/Green |
MIL6 | 1680 | 610 | 3050 | 5 | Grey/Green |
MIL7 | 2210 | 2130 | 27740 | 13 | Grey/Green |
MIL8 | 1370 | 1220 | 10000 | 9 | Grey/Green |
MIL9 | 1000 | 760 | 9140 | 12 | Grey/Green |
MIL10 | 2120 | 1520 | 30500 | 20 | Grey/Green |
MIL11 | 1220 | 300 | 1220 | 2 | Grey/Green |
MIL1.9 | 2740 | 1060 | 3300 | 3 | Grey/Green |
EPW1 | 2100 | 1060 | 33000 | 30 | Grey/Green |

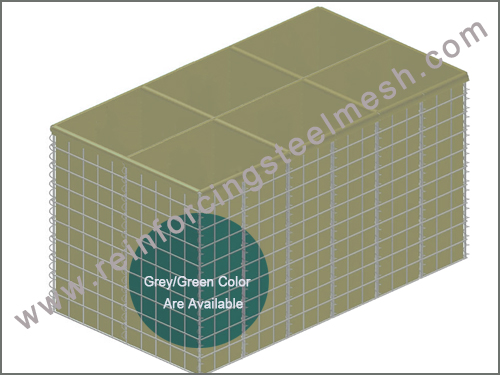

HESCO Barrier Side View

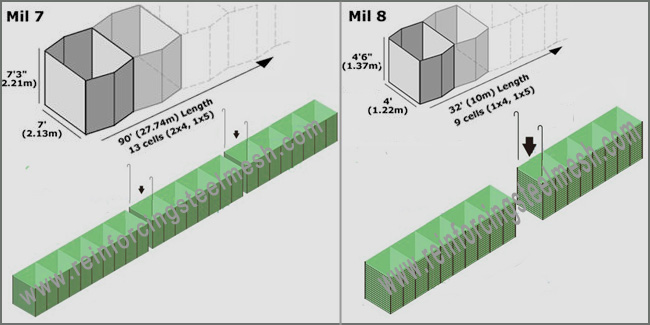

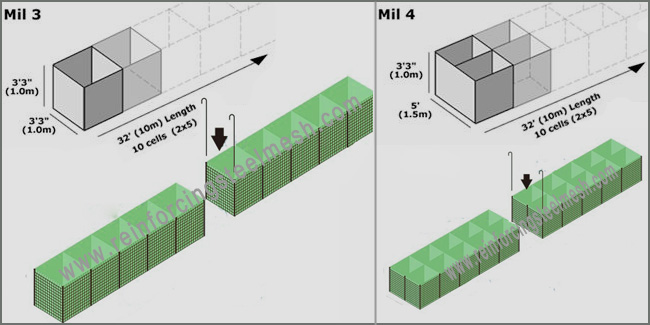

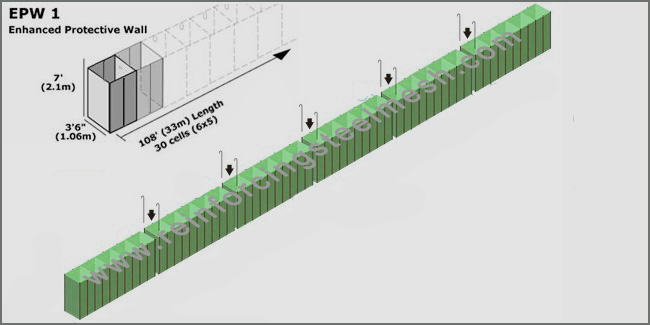

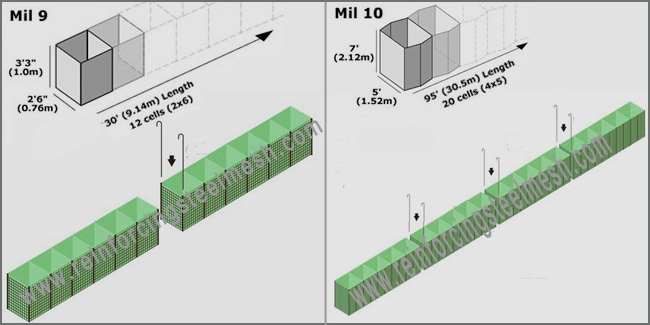

HESCO Barrier Assembly
